SGD Springs

Brutewinder

Name: Brutewinder
Brand: SGD Springs
SKU: brut-1
Price: 1485.00 USD
Availability: InStock

Brutewinder

Shipping calculated at checkout.

Estimated Delivery : 2-3 business days

In stock

Quantity

Texas proud company
Ready to ship
Secure checkout

Product Description

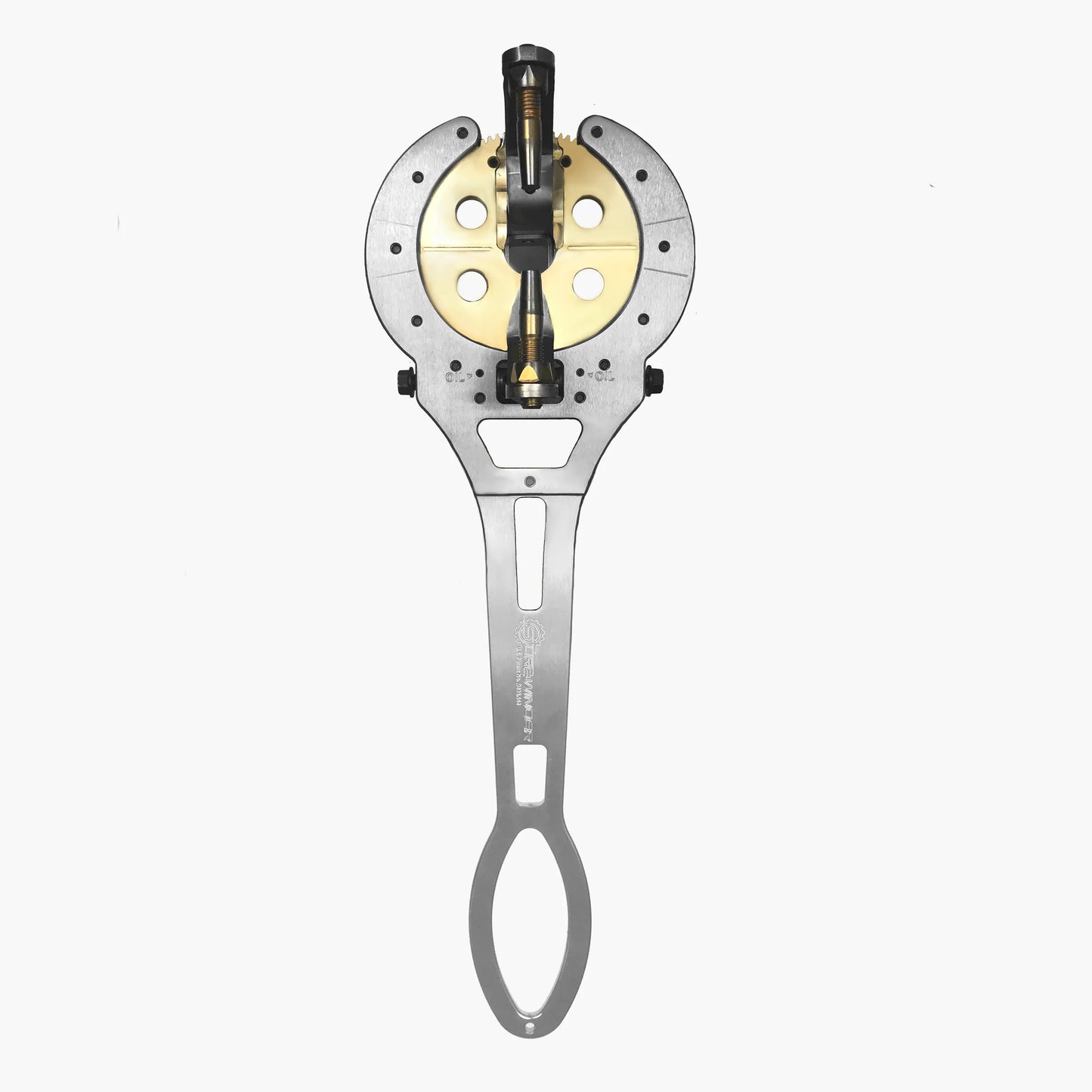

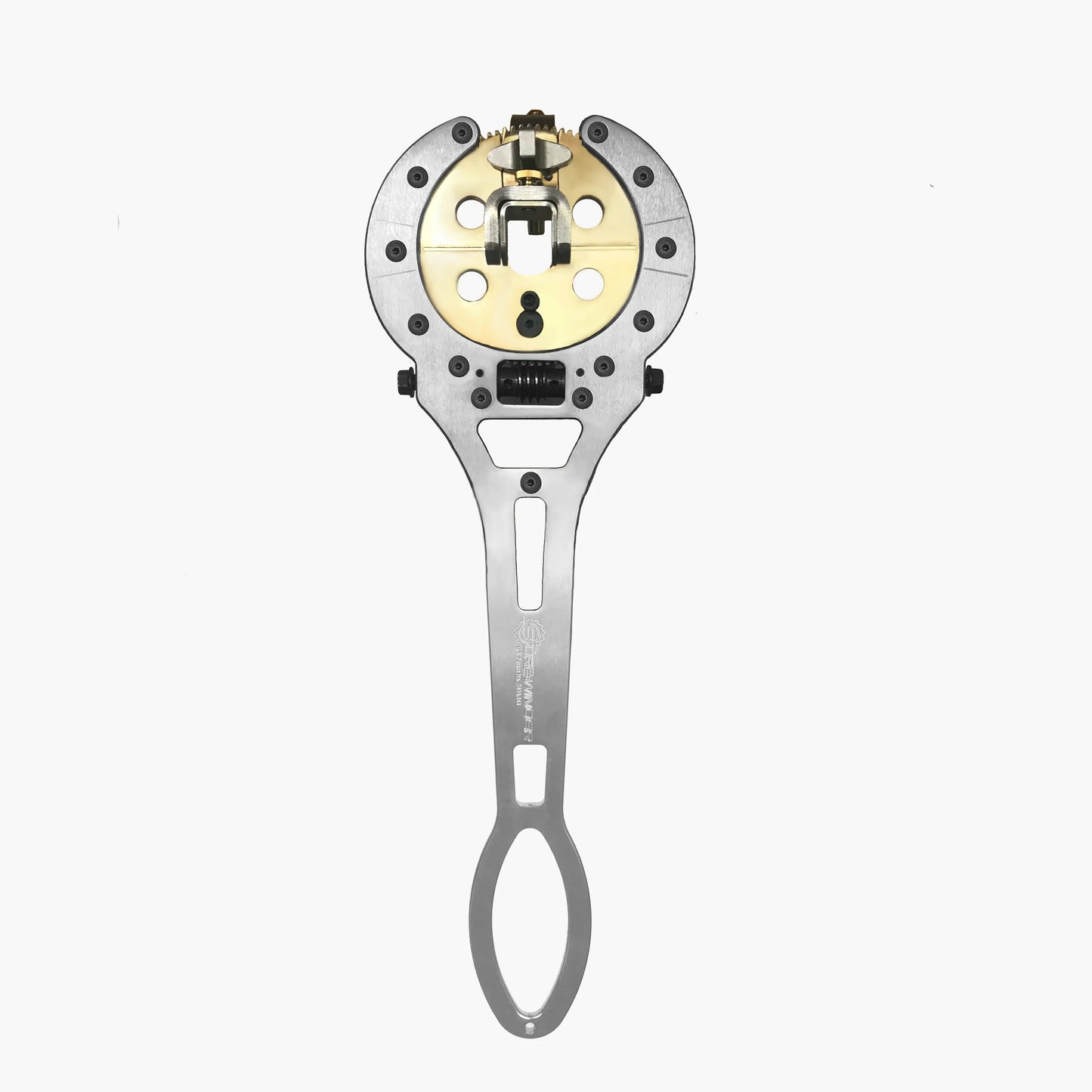

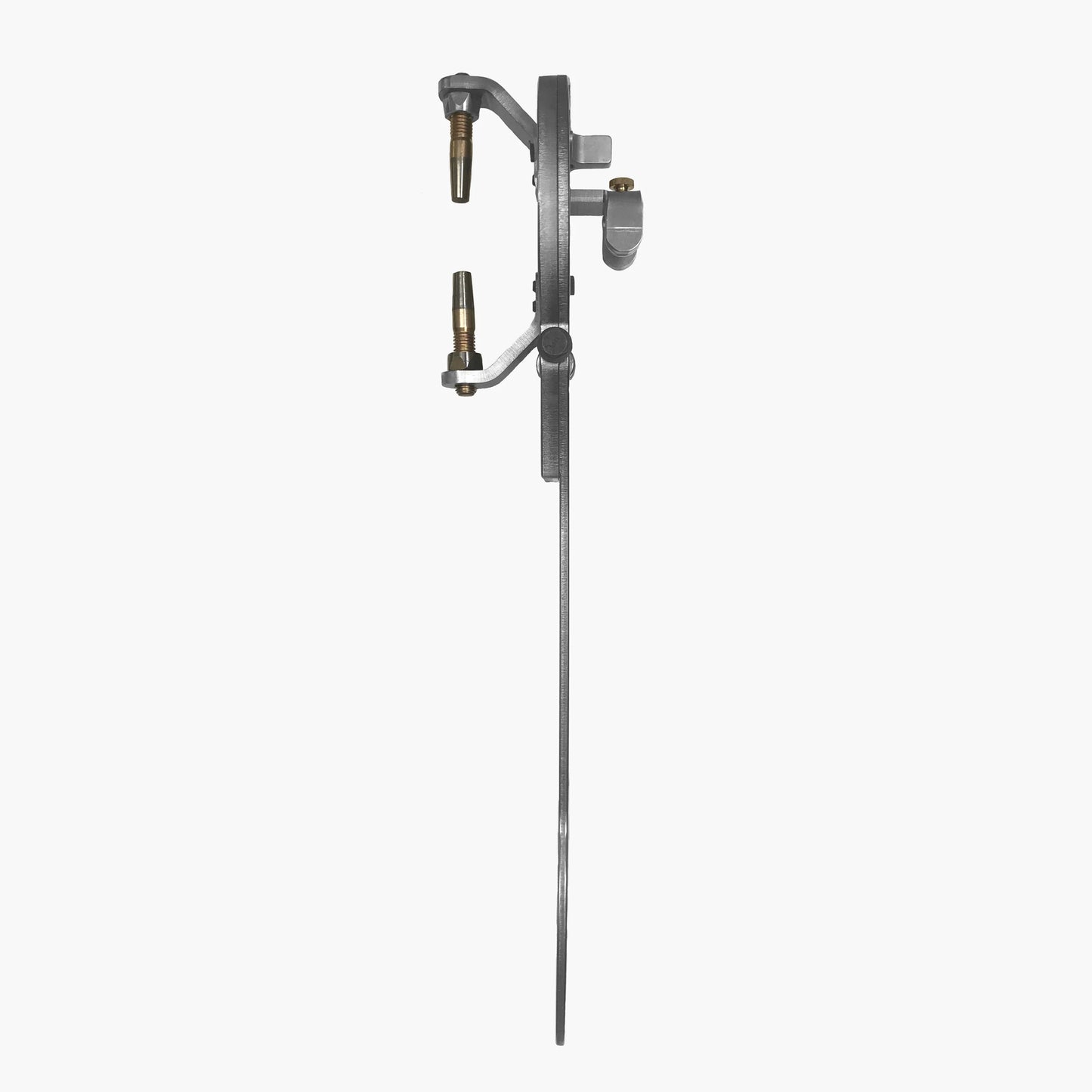

The industry leading commercial grade torsion spring winding tool designed by aerospace engineers and proven in the field for over 10 years to wind and unwind your biggest springs faster and safer.

Specifications

Made for commercial spring applications but able to fit into residential
winding cones (need 3.5” clearance between shaft and wall).
Winds a commercial spring with up to 175 ft-lbs of torque. As a point of
reference, a .437" wire x 6.0"ID x 48"long spring (IPPT = 148) with 14
turns requires 2,077 in-lbs or 173 ft-lbs of torque. Two of these
springs can lift a 1,500 pound door. Brutewinder torque limit is 2,100
inch-pounds of torque.
Use a drill such as the corded DeWalt
DWD460K 1/2" VSR Stud and Joist drill with E-clutch anti-lock control
(two speed 330 rpm, 1200 rpm). Or if you want cordless, use the Cordless
Milwaukee M-18 Fuel Super Hole Hawg 2809.
10 turns in less than a minute w/1,000 RPM drill
Needs 3.5 inch clearance from shaft to wall
Can be used on up to 7.5 inch spring diameters, and can accomodate both 1.0 and 1.25 diameter shafts.
Can be wound at 2,500 RPM
Weighs 11 lbs
Made from Stainless steel and high temper bronze for wear resistance.

Health & Safety Benefits

Torque stabilizing technology does the work for you
Removes dangers inherent in winding bars
Lowers worker compensation claims and lost work time
Minimize fatigue, and safely complete more jobs in a day
Reduces rotator cuff injury

Cost Savings

Wind and unwind springs up to 10 times faster than winding bars
If you pay your techs $60K per year and your work comp rate is 4.5%,
insurance agents say you could get a 20% premium reduction and pay for
60% of the tools for all techs in one year
Lowers worker compensation claims and lost work time
Increase revenue by completing more jobs in a week
